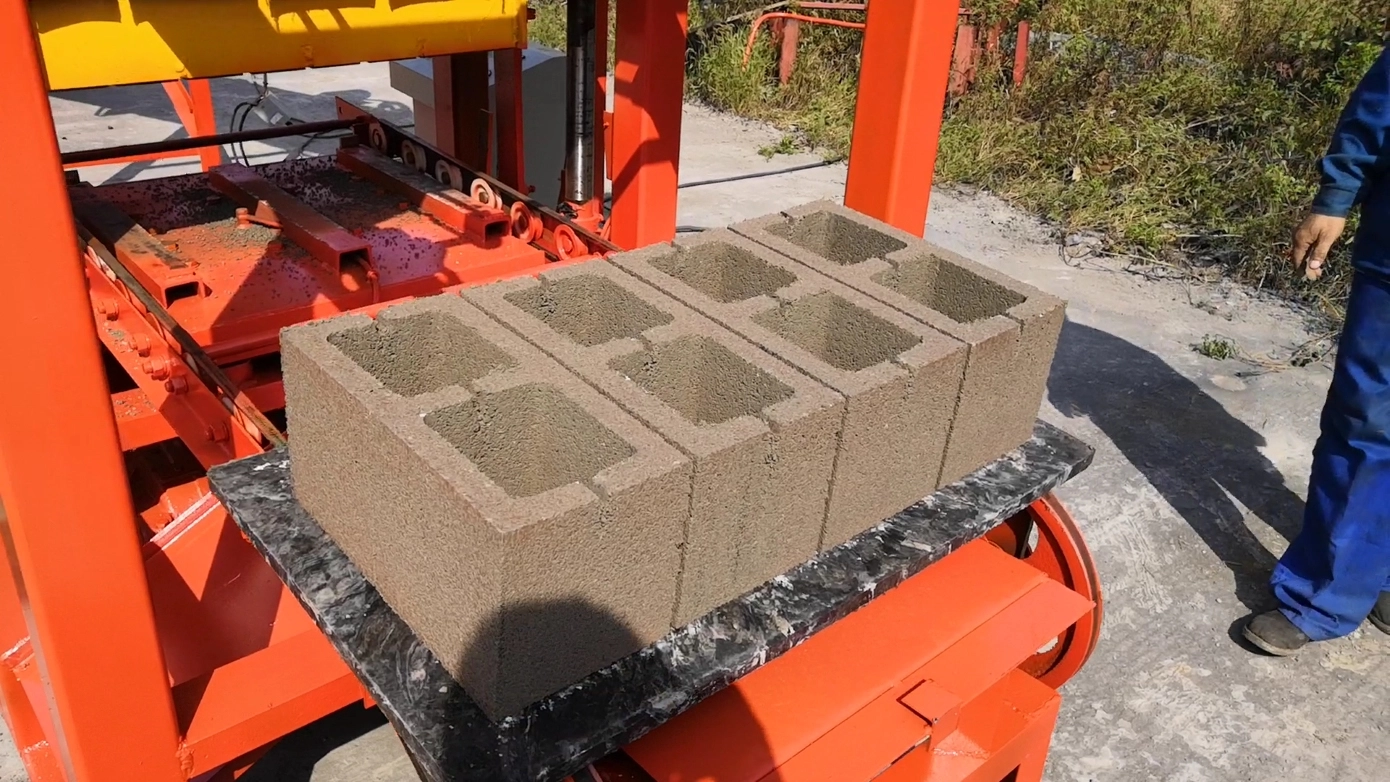

1. Combined Table‑and‑upper‑head Vibration, Full Cavity‑wall Filling And Lower Hollow‑block Reject Rate
Hollow‑blocks contain multiple hollow cavities, which easily lead to insufficient cavity‑wall filling, uneven wall‑thickness and loose corners. QT4‑26D applies synchronized bottom‑table plus upper‑head vibration. Bi‑directional exciting force penetrates gaps around mold cores and fills raw material thoroughly. Finished hollow‑blocks own solid uniform cavity walls and sharp corners with qualified compression strength. It reduces rejects caused by looseness, corner chipping and mold‑sticking, improves raw‑material utilization. Mass‑produced hollow‑blocks meet civil wall‑project acceptance standards and secure profit for thin‑margin hollow‑block orders.
2. Gantry‑steel Frame & Four‑vertical‑shaft Guidance, Durable For High‑frequency Hollow‑block Cycles And Less Unplanned Downtime
Hollow‑block production features frequent mold lifting and heavy vibration impact, which puts high anti‑fatigue requirements on whole machine. Heavy‑duty welded gantry steel frame plus four‑vertical‑shaft guiding sleeves guarantee precise movement for mold and press‑head. Rubber soft‑connection on upper‑mold absorbs vibration shock and lowers component wear. Mature mechanical structure fits two‑shift continuous hollow‑block production in small factories. It reduces sudden breakdown risks from structural shift and excessive wear, prevents hollow‑block order delays and cuts long‑term spare‑part cost.

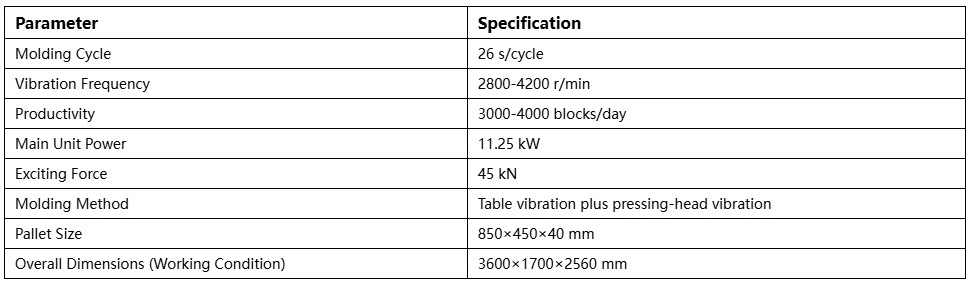

3. 26‑second Molding Cycle & Electric Push‑pull Mold, Stable Hollow‑block Output With Reduced Heavy Labor
Standard hollow‑block molding cycle only takes 26 seconds. Electric push‑pull mechanism automatically ejects finished hollow‑blocks together with pallets, eliminating heavy manual mold‑dragging work. Stable daily output reaches 3000‑4000 hollow blocks. Operators suffer much less physical fatigue during long shifts, sustaining steady production capacity to fulfill wall‑block delivery schedules for small workshops.

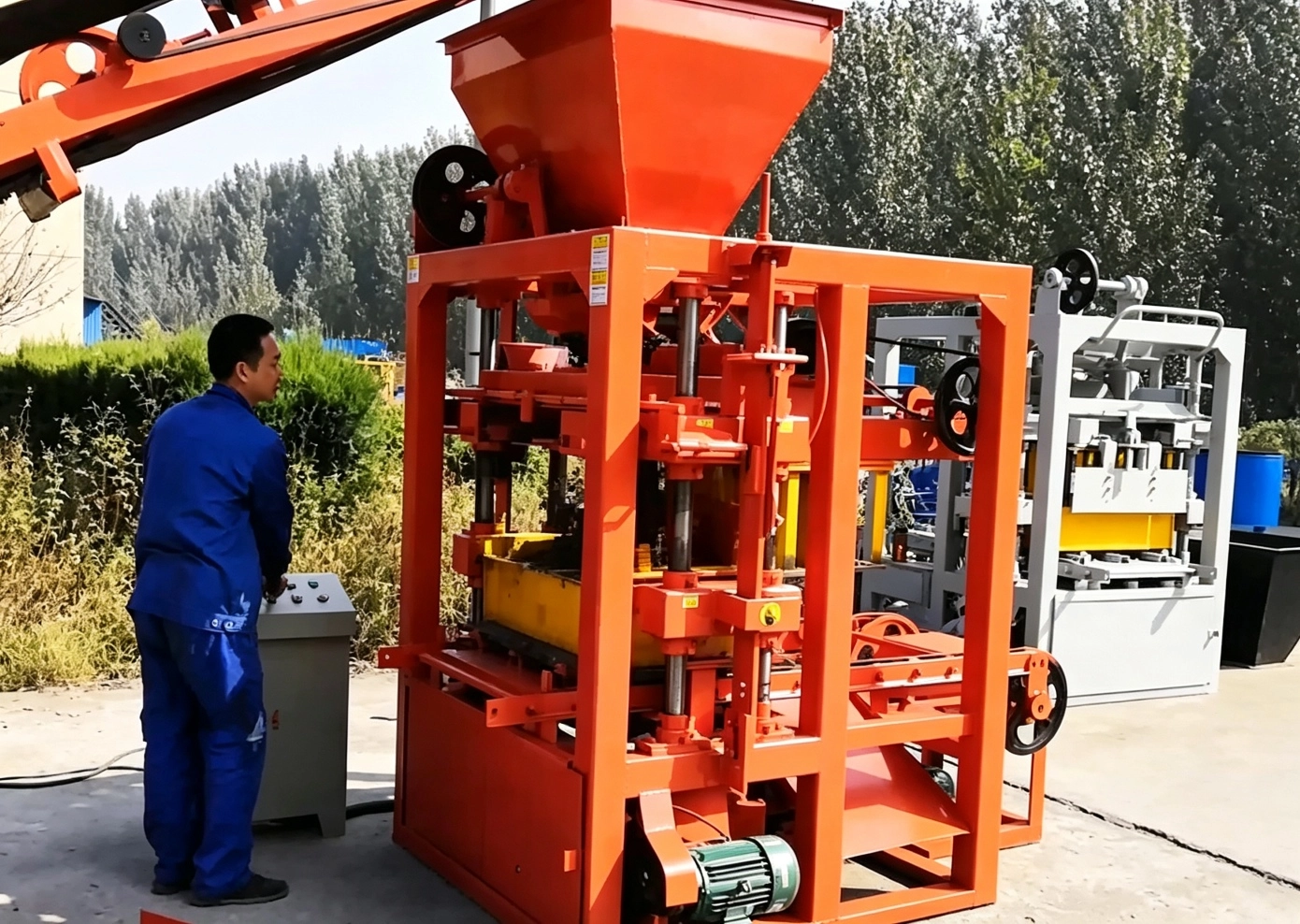

4. Dual Electric / Manual Feeding Modes, High Production Fault‑tolerance For Poor‑power‑supply Sites
Uniform feeding is critical for qualified hollow‑block wall thickness. QT4‑26D provides both electric‑feeding and manual‑feeding systems. Use electric feeding under stable power for consistent hollow‑block quality. When facing voltage fluctuation or minor electric‑component issues, switch to manual feeding and keep hollow‑block production running without full shutdown. Ideal for overseas rural plants and sites with unstable power supply, lowering order‑delay risks caused by minor electrical troubles.

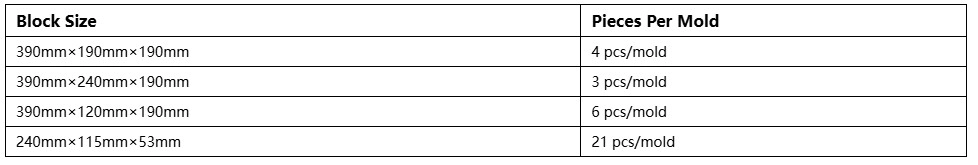

5. User‑friendly Hollow‑block Mold Replacement, Multi‑product Flexibility Against Seasonal Hollow‑block Demand
Specially‑adapted molds for 390×190×190 mm standard hollow‑blocks feature easy‑to‑disassemble structure. Mold‑core delivers precise hollow‑hole geometry for neat‑looking finished blocks. During hollow‑block off‑seasons, swap molds quickly to produce perforated bricks or solid standard bricks and avoid machine idling. One host covers mainstream wall‑building products, raises annual equipment utilization rate and accelerates investment pay‑back.
6. Wide Raw‑material Compatibility, Utilize Local Residues To Reduce Hollow‑block Unit‑cost
It works with ordinary dry‑hard and lightweight concrete for hollow‑block manufacturing. Acceptable materials include river sand, manufactured sand, stone dust, fly ash, furnace slag, coal gangue, volcanic scoria, ceramsite and perlite. Plant owners can source cheap local industrial waste, optimize formula while guaranteeing hollow‑block strength, and cut expensive cement & aggregate purchase. It improves your quotation competitiveness in local hollow‑block market.
1. Combined Table‑and‑upper‑head Vibration, Full Cavity‑wall Filling And Lower Hollow‑block Reject Rate
Hollow‑blocks contain multiple hollow cavities, which easily lead to insufficient cavity‑wall filling, uneven wall‑thickness and loose corners. QT4‑26D applies synchronized bottom‑table plus upper‑head vibration. Bi‑directional exciting force penetrates gaps around mold cores and fills raw material thoroughly. Finished hollow‑blocks own solid uniform cavity walls and sharp corners with qualified compression strength. It reduces rejects caused by looseness, corner chipping and mold‑sticking, improves raw‑material utilization. Mass‑produced hollow‑blocks meet civil wall‑project acceptance standards and secure profit for thin‑margin hollow‑block orders.
2. Gantry‑steel Frame & Four‑vertical‑shaft Guidance, Durable For High‑frequency Hollow‑block Cycles And Less Unplanned Downtime
Hollow‑block production features frequent mold lifting and heavy vibration impact, which puts high anti‑fatigue requirements on whole machine. Heavy‑duty welded gantry steel frame plus four‑vertical‑shaft guiding sleeves guarantee precise movement for mold and press‑head. Rubber soft‑connection on upper‑mold absorbs vibration shock and lowers component wear. Mature mechanical structure fits two‑shift continuous hollow‑block production in small factories. It reduces sudden breakdown risks from structural shift and excessive wear, prevents hollow‑block order delays and cuts long‑term spare‑part cost.
3. 26‑second Molding Cycle & Electric Push‑pull Mold, Stable Hollow‑block Output With Reduced Heavy Labor
Standard hollow‑block molding cycle only takes 26 seconds. Electric push‑pull mechanism automatically ejects finished hollow‑blocks together with pallets, eliminating heavy manual mold‑dragging work. Stable daily output reaches 3000‑4000 hollow blocks. Operators suffer much less physical fatigue during long shifts, sustaining steady production capacity to fulfill wall‑block delivery schedules for small workshops.
4. Dual Electric / Manual Feeding Modes, High Production Fault‑tolerance For Poor‑power‑supply Sites
Uniform feeding is critical for qualified hollow‑block wall thickness. QT4‑26D provides both electric‑feeding and manual‑feeding systems. Use electric feeding under stable power for consistent hollow‑block quality. When facing voltage fluctuation or minor electric‑component issues, switch to manual feeding and keep hollow‑block production running without full shutdown. Ideal for overseas rural plants and sites with unstable power supply, lowering order‑delay risks caused by minor electrical troubles.
5. User‑friendly Hollow‑block Mold Replacement, Multi‑product Flexibility Against Seasonal Hollow‑block Demand
Specially‑adapted molds for 390×190×190 mm standard hollow‑blocks feature easy‑to‑disassemble structure. Mold‑core delivers precise hollow‑hole geometry for neat‑looking finished blocks. During hollow‑block off‑seasons, swap molds quickly to produce perforated bricks or solid standard bricks and avoid machine idling. One host covers mainstream wall‑building products, raises annual equipment utilization rate and accelerates investment pay‑back.
6. Wide Raw‑material Compatibility, Utilize Local Residues To Reduce Hollow‑block Unit‑cost
It works with ordinary dry‑hard and lightweight concrete for hollow‑block manufacturing. Acceptable materials include river sand, manufactured sand, stone dust, fly ash, furnace slag, coal gangue, volcanic scoria, ceramsite and perlite. Plant owners can source cheap local industrial waste, optimize formula while guaranteeing hollow‑block strength, and cut expensive cement & aggregate purchase. It improves your quotation competitiveness in local hollow‑block market.
